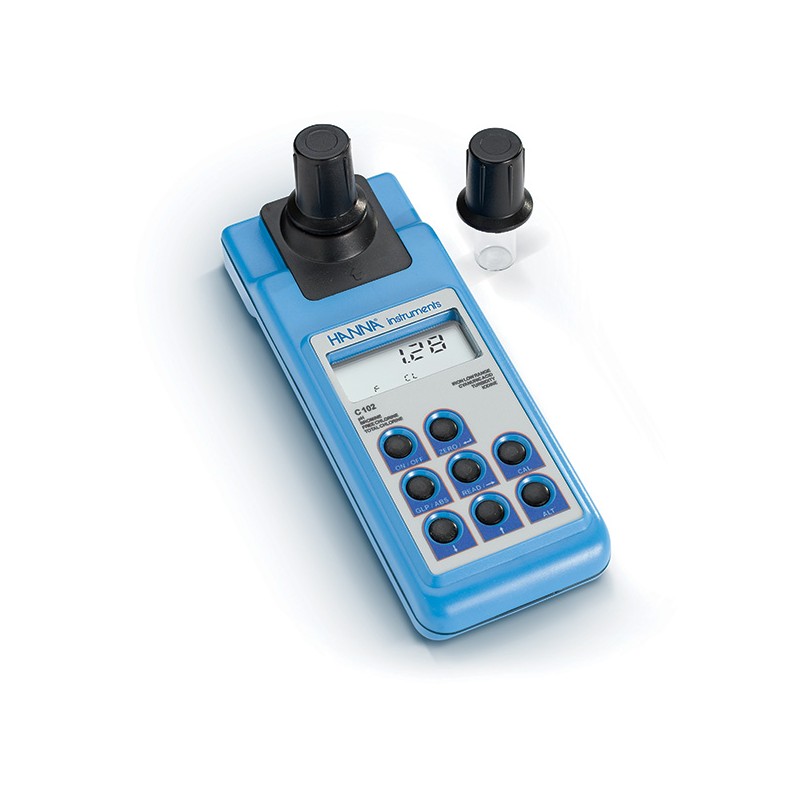

HI-93102 MULTI RANGE PORTABLE TURBIDITY METER FOR WATER ANALYSIS
The most important parameters needed for water analysis can all be measured by using the HI-93102.
Delivering laboratory grade accuracy, this all in one instrument allows operators to measure turbidity, pH, total and free chlorine, bromine, iodine, iron and cyanuric acid quickly and easily.
Designed for rigorous testing conditions where speed and precision are of utmost importance, it is the ideal meter for measuring drinking water and similar high definition applications.
| Range: | ||
| Turbidity | 0.00 to 9.99 NTU / 0.00 to 50.0 NTU | |
| Bromine | 0.00 to 8.00 mg/L (ppm) | |
| Free Cl2 | 0.00 to 2.50 mg/L (ppm) | |
| Total Cl2 | 0.00 to 3.50 mg/L (ppm) | |
| CYS | 0 to 80 mg/L (ppm) | |
| Iodine | 0.0 to 12.5 mg/L (ppm) | |
| Iron LR | 0.00 to 1.00 mg/L (ppm) | |
| pH | 6.5 to 8.5 pH | |
| Resolution: | ||
| Turbidity | 0.01 and 0.1 NTU | |
| Bromine | 0.01 mg/L (ppm) | |
| Free and Total Cl2 | 0.01 mg/L (ppm) | |
| CYS | 1 mg/L (ppm) | |
| Iodine | 0.1 mg/L (ppm) | |
| Iron LR | 0.01 mg/L (ppm) | |
| pH | 0.1 pH | |
| Accuracy @25°C: | ||
| Turbidity | ±0.5 NTU or ±5% of reading (whichever is greater) | |
| Bromine | ±0.08 mg/L (ppm) ±3% of reading | |
| Free and Total Cl2 | ±0.03 mg/L (ppm) ±3% of reading | |
| CYS | ±1 mg/L (ppm) ±15% of reading | |
| Iodine | ±0.1 mg/L (ppm) ±5% of reading | |
| pH | ±0.1 pH | |
| Calibration | two points; selectable between 0.00 - 50.0 FTU (0.00 and 20.0 FTU recommended) | |
| Light Source | pure green LED | |
| Light Detector | silicon photocell | |
| Battery Type / Life | 1.5V AA (4) / approximately 60 hours of continuous use or 1000 measurements; automatic shut-off selectable after 10, 20, 30, 40, 50 or 60 minutes | |
| Environment | 0 to 50°C (32 to 122°F); RH max 95% (non condensing) | |
| Dimensions / Weight | 220 x 82 x 66 mm (8.7 x 3.2 x 2.6’’) / 510 g (1.1 lb.) |
